Commercial Tensile Membrane Carport Canopies: The Ultimate Architectural Design Guide
A commercial tensile membrane carport should protect the required parking area without making vehicle movement, door access or maintenance more difficult.
For developers and contractors, the useful design question is how the canopy fits the parking operation. A roof can cover the specified square meters yet place a column beside a vehicle door, discharge water into a pedestrian route or leave charging users outside the protected area.
We recommend developing the parking layout and canopy layout together before fixing the roof shape.
Start With the Parking Plan
The initial drawing should show more than the site boundary and total roof area.
Include parking bays, driving aisles, entry and exit routes, pedestrian paths and any accessible spaces. Identify the vehicle types expected to use the facility and the clearances required by the project.
Existing sites should also show drainage, underground services, lighting, trees and equipment that may restrict foundation positions or installation access.
A photograph can explain the site, but a dimensioned plan is needed to assess the relationship between the canopy and parking operation.
Compare Support Arrangements Against Actual Use
Different support layouts create different opportunities and constraints.
| Arrangement | Potential benefit | Main issue to review |
|---|---|---|
| Supports along one side | Keeps the opposite side more open | Cantilever behavior, foundation reactions and rear clearances |
| Supports between parking rows | Can serve coverage on both sides | Vehicle overhang, pedestrian movement and services in the central zone |
| Supports around the perimeter | Can keep some internal areas clear | Required span and available foundation locations |
| Repeated structural bays | Provides a consistent layout | Alignment with parking modules and access routes |
The best arrangement is the one that fits the site and can be engineered economically.
Removing a column does not automatically create an additional parking space. Any capacity claim should be demonstrated by comparing dimensioned layouts with the same access and clearance requirements.
For the broader relationship between support positions and structure, see our span and column layout guide.
Separate Roof Area From Effective Protection
Three areas should be distinguished during design:
- Membrane surface area: the developed curved area relevant to fabrication.
- Horizontal roof coverage: the area beneath the roof in plan.
- Effective protection: the area sheltered under the relevant sun and rain conditions.
These quantities are not interchangeable.
For example, a canopy that follows the vehicle outline may leave the door-opening area exposed. A high roof may provide adequate vehicle clearance but offer less protection from low-angle sunlight or wind-driven rain.
Ask the designer to identify the priority area: vehicles, occupants getting in and out, a pedestrian route, charging equipment or a combination of these.
Set Clearance at the Lowest Relevant Obstruction
Clearance should be checked beneath the completed assembly.
Depending on the layout, the lowest obstruction may be a beam, brace, gutter, light fitting, sign or cable support rather than the membrane itself.
Review clearance along the vehicle route as well as within the parking bay. Where the facility must accommodate service vehicles or other taller vehicles, identify those requirements before the structural arrangement is approved.
The applicable project requirements should establish the dimensions. A single generic carport height should not be applied across all sites.
Coordinate Drainage With Doors and Walking Routes
Drainage design should identify where water travels across the roof, how it is collected and where it goes after discharge.
For a parking canopy, check whether water could fall onto:
- Vehicle door-opening areas.
- Pedestrian paths between rows.
- Charging connectors or payment terminals.
- Ramps and accessible routes.
- Entrances to nearby buildings.
Concealing downpipes within columns is one possible detail, not a requirement for every project. The chosen arrangement should allow inspection and clearing while coordinating with the foundation and site drainage.
Our outdoor canopy drainage guide explains why the ground-level connection needs to be reviewed alongside the roof.
Do Not Infer Foundation Size From Membrane Weight
The covering may be lightweight, but the complete canopy still transfers forces into its foundations.
Support reactions depend on the structural form, membrane tension, environmental loads and connection arrangement. A layout with fewer supports may concentrate demands at the remaining foundations.
For existing parking areas, establish whether the proposed foundations conflict with services or existing structures. The presence of concrete paving should not be treated as confirmation that it can receive canopy anchors.
Foundation design and local construction responsibilities should be identified before the canopy package is released for fabrication.
Specify the Membrane and Steel Finish Separately
PVDF-finished PVC-coated polyester and PTFE-coated glass fabric are possible membrane options. Selection should follow the project’s material, fire-performance, appearance and service requirements.
Request the exact manufacturer and product series, relevant technical documents and warranty conditions. A generic material name does not establish the service life or maintenance needs of the finished roof.
Steel protection should likewise be specified for the actual environment. Confirm the proposed treatment, inspection requirements and repair method for damage during transport or installation.
Neither a membrane selection nor a coating description establishes that the whole structure will remain free from corrosion, staining or maintenance.

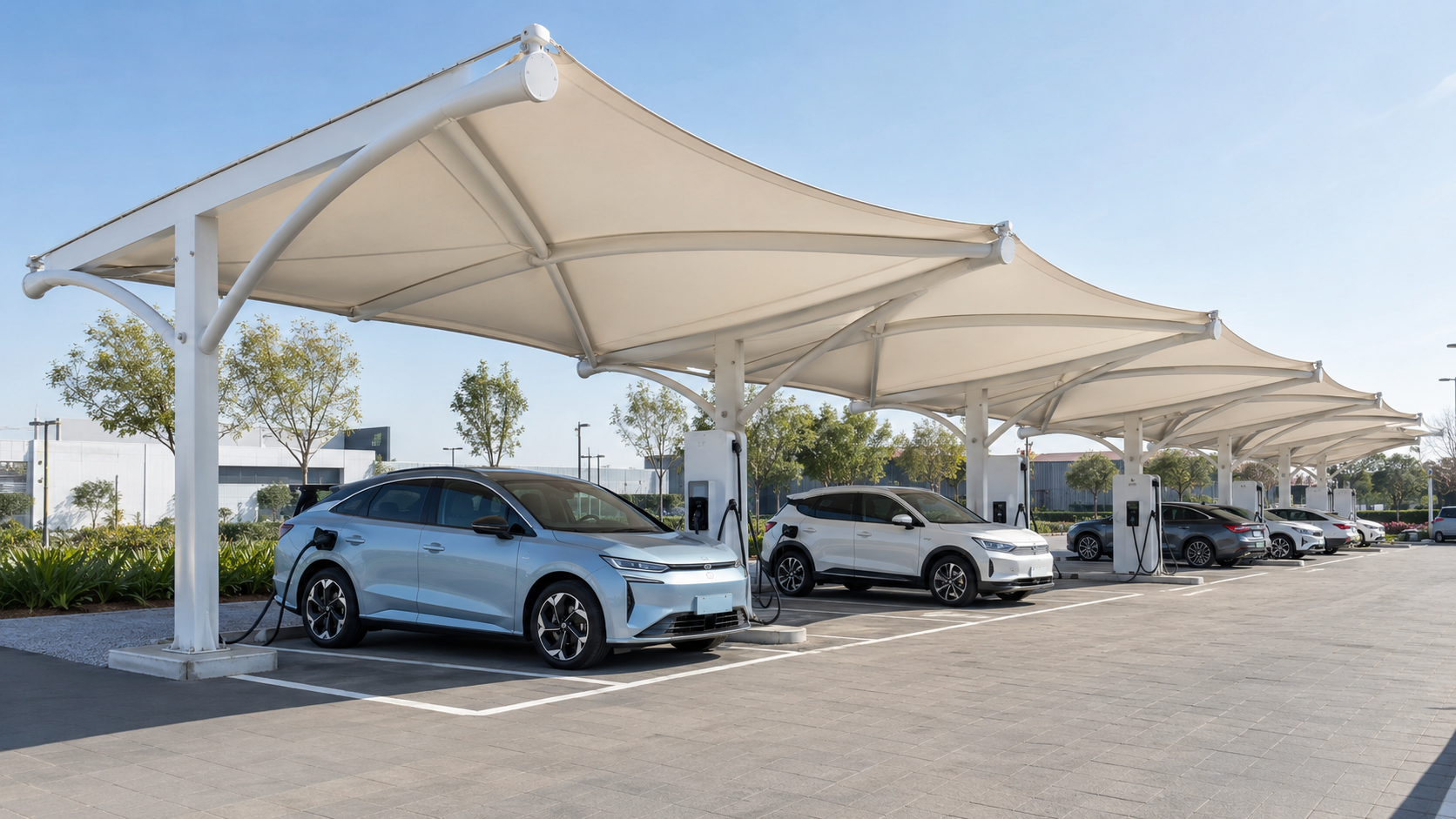

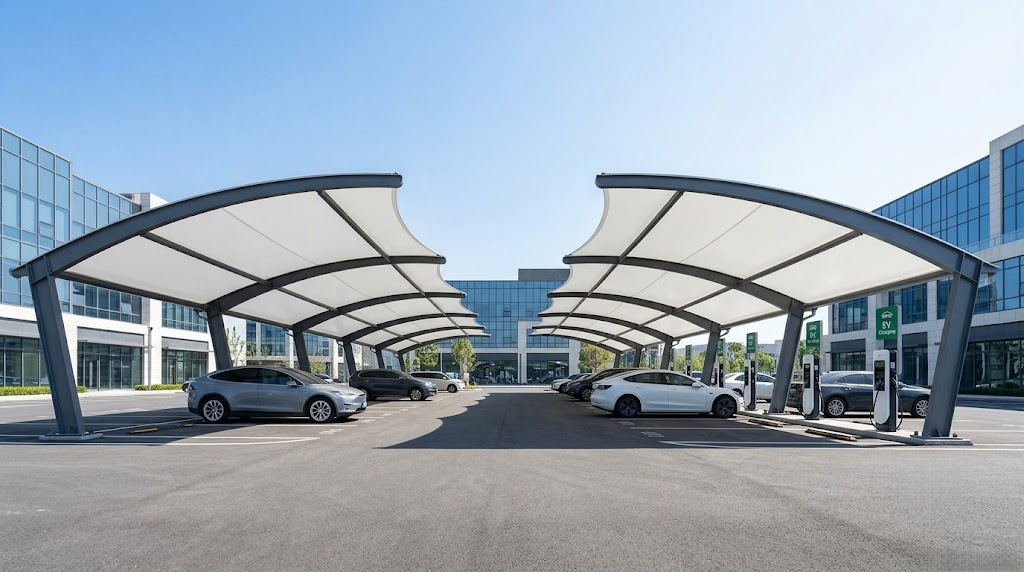

EV Charging Equipment Requires Its Own Coordination
For charging areas, add the charger location, connector position and cable operating space to the canopy drawing.
Column placement should preserve access to equipment doors and service panels. Drainage should avoid the charging operation, and lighting should support connector handling and reading displays.
Agree on responsibility for equipment supports, electrical installation, protective measures and any required separation or clearance. The canopy does not replace the charger’s environmental protection or the electrical installation’s safety provisions.
Our EV charging canopy guide covers these interfaces in more detail.
If photovoltaic equipment is planned, treat it as a defined addition to the design. Its supports, attachments, loads, wiring and maintenance access should be reviewed by the relevant designers and equipment suppliers. It should not be assumed that panels can be attached to any membrane roof.
Confirm the Layout Before Fabrication
Before approving production, review one coordinated drawing set showing:
| Item | Confirmation required |
|---|---|
| Parking operation | Bays, aisles, vehicle routes and pedestrian access |
| Coverage | Areas to be protected and relevant canopy edges |
| Structure | Columns, braces, foundations and clearances |
| Drainage | Collection points, downpipes and site connection |
| Equipment | Chargers, lights, signs and cable supports |
| Installation | Access, lifting arrangements and work sequencing |
| Supply boundary | Included components and local contractor responsibilities |
For an operating car park, the installation plan should also identify which areas will be unavailable and how deliveries and lifting will be coordinated.
